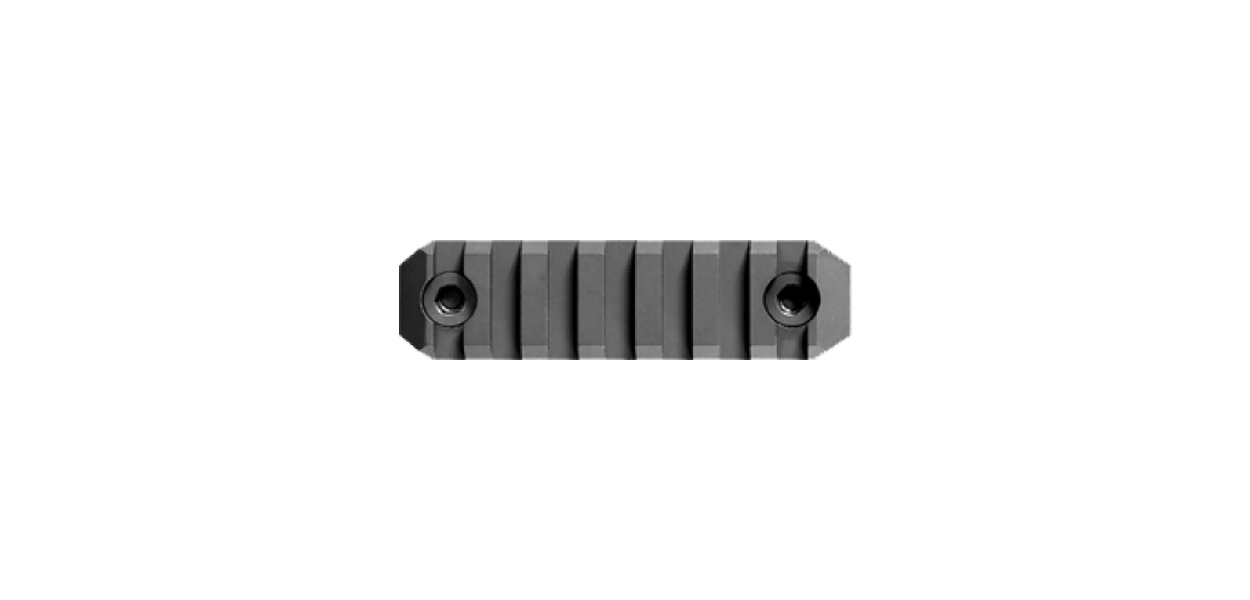

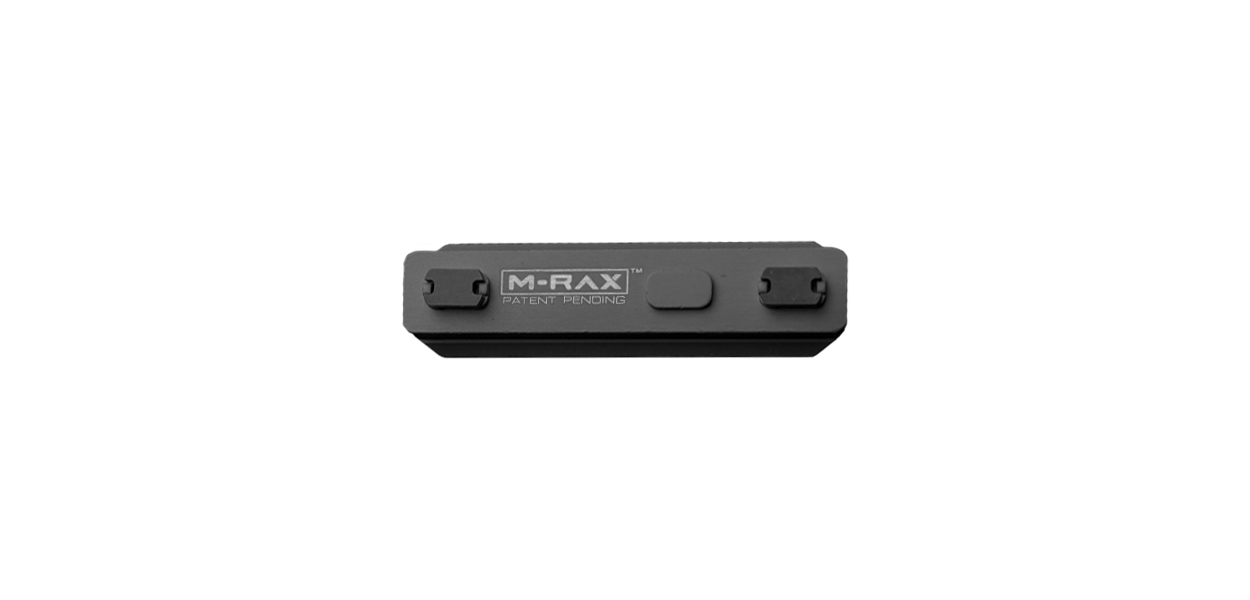

Introducing the new M-RAX attachment system by Maxim Defense. Unlike the traditional M-Slot mounting systems, M-RAX utilizes the entire slot of your rail, maximizing space. This makes the M-RAX system end-to-end stackable, allowing you to create seamless monolithic rail sections where needed.

Installation and removal is a breeze. Thanks to the spring-loaded screws, the M-RAX system removes mounting frustrations. Simply push the screw in with a standard hex tool and rotate 90 degrees. The locking lugs engage that easily—no more fighting or timing screws. Just push, turn, and tighten.

FITS: Compatible with all M-Slot handguards and forends

Technical Specification

2 • M-Slot (3.145”) / 1.54oz
3 • M-Slot (4.720”) / 2.31oz
4 • M-Slot (6.295”) / 3.09oz
5 • M-Slot (7.870”) / 3.87oz
6 • M-Slot (9.445”) / 4.62oz
6061-T6 Billet Aluminum
Hard Coat Anodize type 3 Class 2

Available in black and FDE

Easy installation and removal

M-RAX sections meet M1913 specifications

Patent Pending spring loaded universal interface system eliminates the need to adjust the gap between the T-Nut and accessory to match the thickness of the mounting surface. Simply use the supplied hex key to push the spring loaded hardware through the M-slot, twist 90 degrees to engage, release tension and then tighten normally.

Secure mounting point for any picatinny rail-mounted accessories such as grips, lights, lasers, etc.

Product Spec Sheet
